Prodotti > Sensori > Infrarosso
PRODUCTS > SENSORS
INFRARED HOT METAL DETECTOR
IN COLLABORAZIONE CON:
(cliccare sull'immagine)
HMD Hot Metal Detector PROXITRON
THE BEST OF TECHNOLOGY
OX SERIES

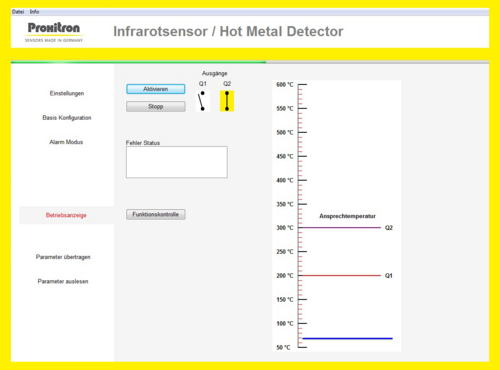

Parameter setting is as easy as anything, remote control and monitoring are now possible, and more further clever functions have been added.

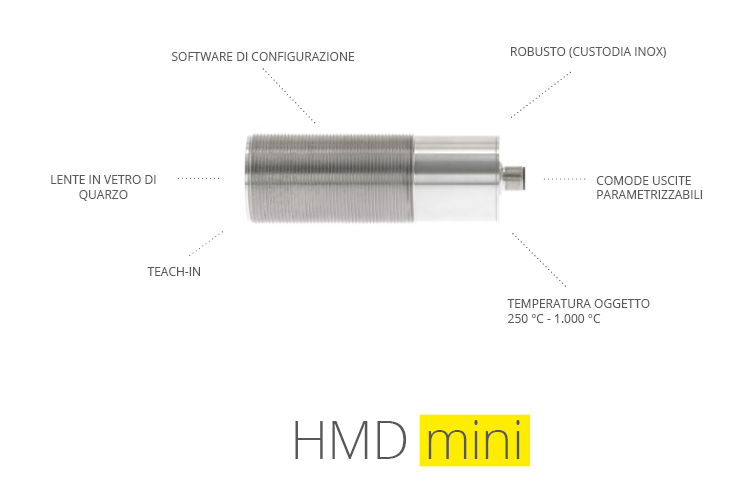

HMD MINI
Small, high-performing and at optimal costs.
The robust and small stainless steel housing make him to an all-rounder for many applications.
(cliccare sull'immagine)
(cliccare sull'immagine)
(cliccare sull'immagine)
(cliccare sull'immagine)
Infrared Loop Scanner HMD PROXITRON
Detection and position monitoring with high sensitivity
The new Proxitron infrared loop scanner detects hot material and measures its position with high precision.
The integrated, maintenance-free CCD line detects hot material even under the toughest conditions. No matter whether it is a large slab or a thin wire.
Features at a glance:
- robust housing with water cooling
- scanning angle 43°
- ambient temperature: up to 85 °C with cooling; up to 50 °C without cooling
- object temperature: from 600 °C
- reaction time 3 ms
- 1 x switching output (NPN/PNP)
- 1 x analogue output 0 - 10 V DC
- maintenance-free
- plug MIL 19
INFRARED PHOTODETECTOR
